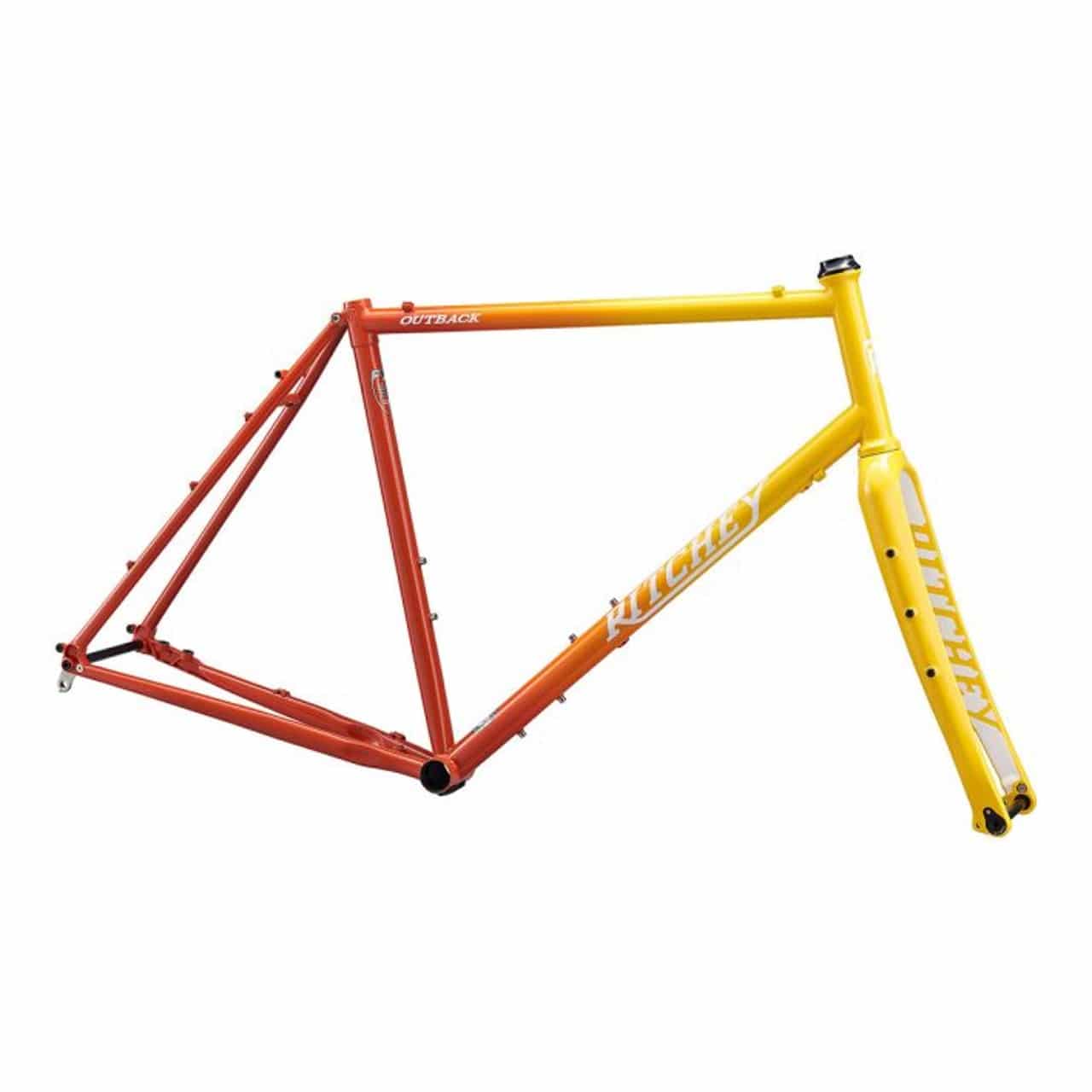

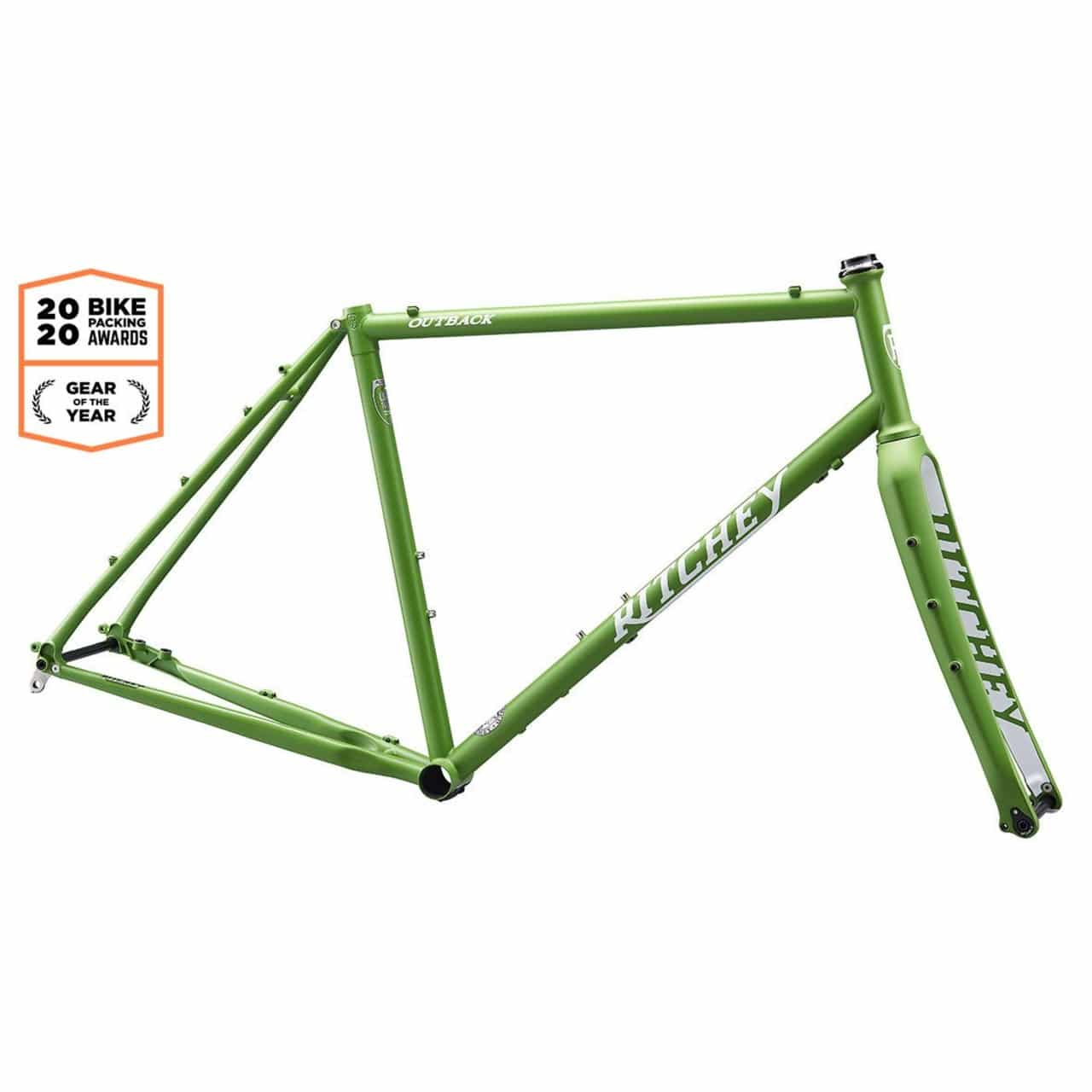

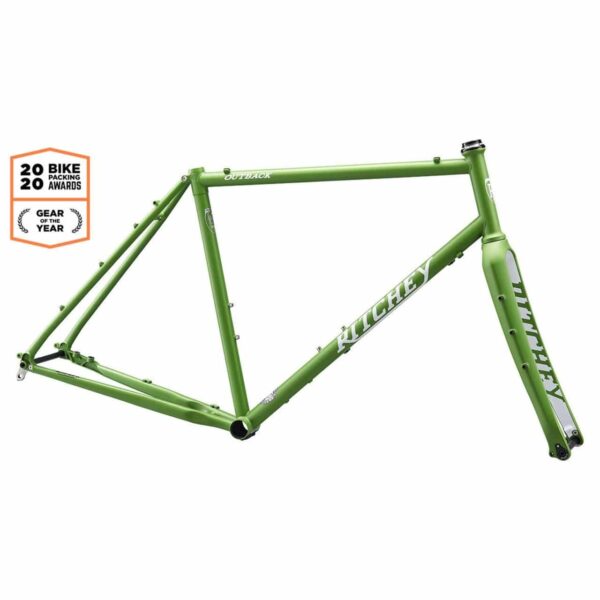

Il RITCHEY Frameset Outback è l’icona del grintoso mondo delle bici gravel e dell’avventura. Il telaio in acciaio , costruito con tubi a triplo spessore, è provvisto di supporti per parafanghi. Per noi è il telaio Gravel in acciaio per eccellenza, pronto ad affrontare tutti i terreni con ruote 700C o 650b, ideale per fare Bikepacking e viaggi.
Puoi leggere la nostra recensione in questo articolo sul nostro Blog.
Frame
- Material: heat-treated, triple-butted Ritchey Logic steel tubing – TIG welded
- Rack and fender mounts
- Ultra-light forged and machined straight 1-1/8″ headtube
- WCS headset included (upper IS42/28.6 – 16mm stack height | lower IS42/30)
- 142mm spacing (12mm alloy thru-axle included)
- Replaceable stainless-steel derailleur hanger
- 27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
- Front derailleur clamp size: 28.6mm (max torque setting: 2.5Nm) – not included
- Bottom bracket: 68mm – English threaded
- Can accommodate 1X or 2X chainrings
- Crankset min/max ring size – single: 36 to 46t / double: 46/30t to 50/34t
- External cable routing
- Bottle mounts: 3
Fork
- New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
- 1-1/8″ straight steerer with integrated 45-degree crown race
- 100mm spacing (12mm alloy thru-axle included)
- Steerer length: 300mm
- Axle-crown: 393mm
- Rake/Offset: 50mm
- Fork max payload: 3kg per side
Tire Compatibility
- Wheel and tire compatibility: 700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)
- Frame max spacing: 58mm
- Fork max spacing: 60mm
Brake Compatibility
- Flat-mount brakes front and rear: 140mm (160mm max – adaptors available separately)
- Frame flat-mount bracket height: 10mm
Details
- Sizes: XS / S / M / L / XL
- Frame weight: 2,175g (size L – w/o thru-axle)
- Fork weight: 445g (with uncut steerer / not including axle)
- Color: Guac y Crema
