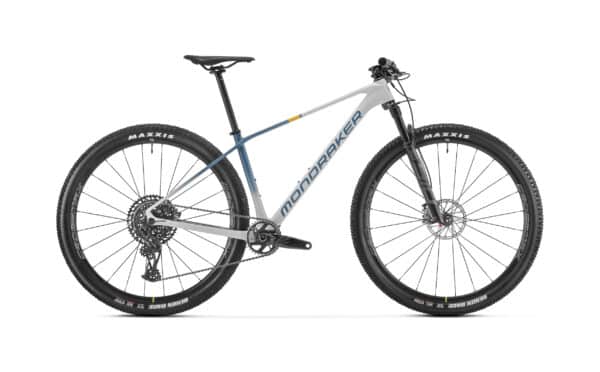

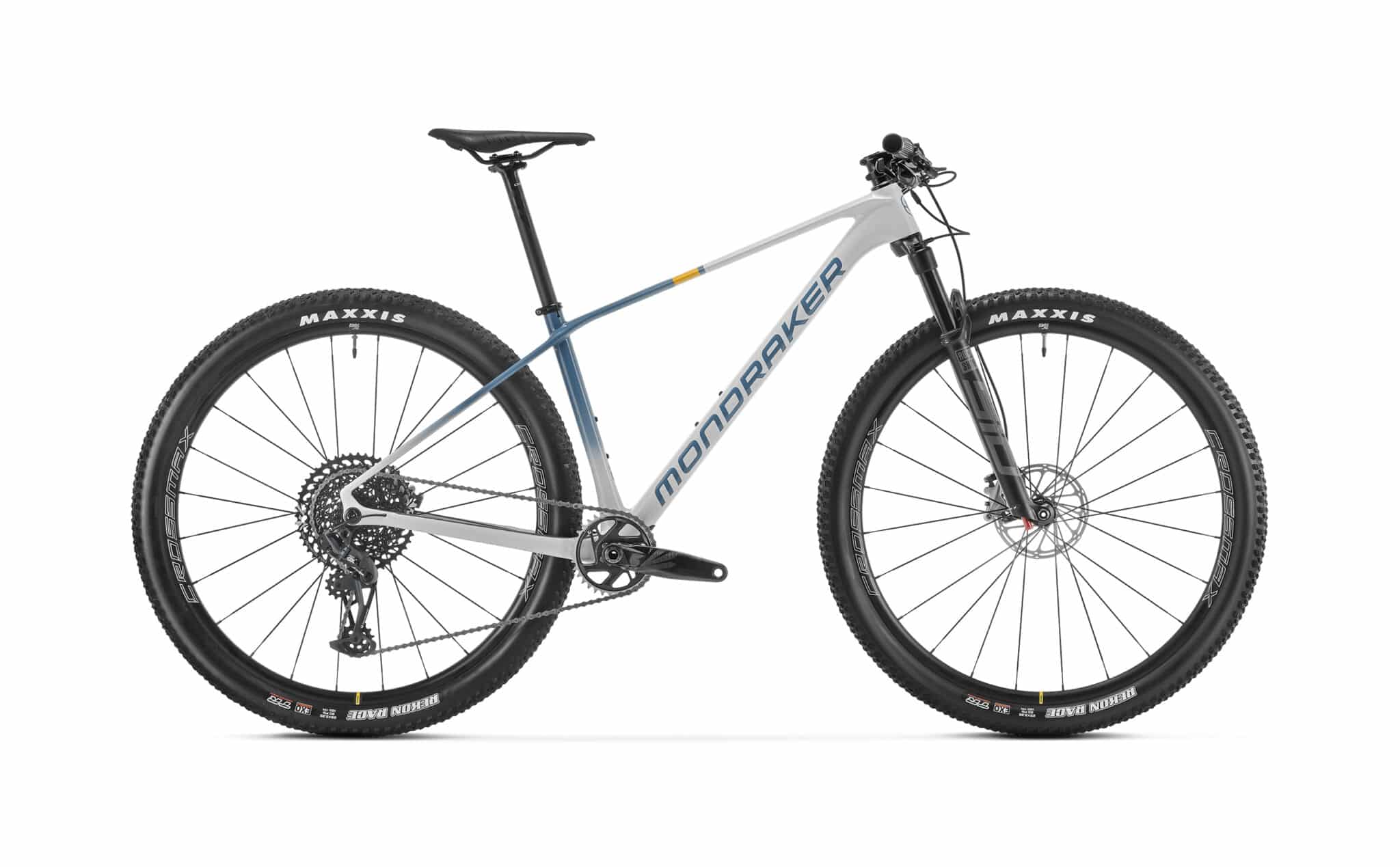

MONDRAKER PODIUM ED2

Telaio

Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,

Taglie

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

Forcella

Rockshox SID SL Base RL 2P Remote 29, 100mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload

Telecomando della forcella

RockShox TwistLoc Base FullSprint 125 B1 2 Position (10mm), Twist to lock, Twist to unlock

Sterzo

Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8×30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

Attacco manubrio

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 60mm, M size: 60mm, L size: 70mm, XL size: 80mm

Manubrio

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Manopole

Onoff Twin, 1lock-on, 135mm

Reggisella

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm

Sella

Fizik Antares R11

Freno anteriore

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Freno posteriore

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Leve Freno

Sram Level Bronze, tools-free reach adjust, lever pivot bushings

Cerchi

Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes

Raggi

Mavic straight-pull double butted, contactless lacing

Asse mozzo anteriore

Mavic, Boost 15x110mm, IS 6 bolts

Asse mozzo posteriore

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub

Pneumatico anteriore

Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead

Pneumatico posteriore

Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead

Pedivelle

Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 56

Guarnitura

34T, CNC-machined alloy, X-SYNC 6

Movimento centrale

Sram DUB BSA, sealed bearings, 73mm

Catena

Sram NX Eagle, 12s, Powerlock

Cambio – Posteriore

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:5

Comandi cambio

Sram Trigger GX Eagle, 12s, X-Actuation 1:5

Cassetta Pignoni

Sram XG-1275, 10-50T, 12s

Forcellino

Sram UDH
