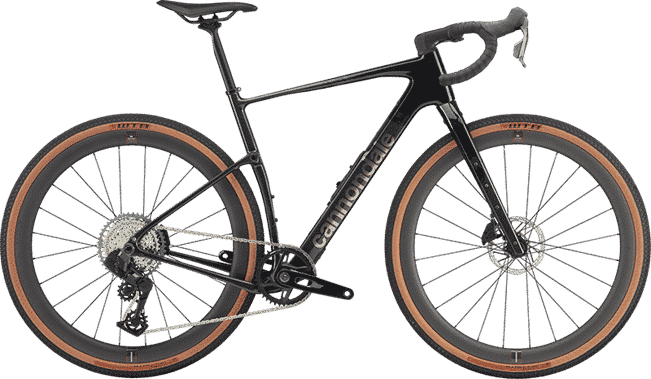

CANNONDALE Topstone Carbon 1 AXS
Always Game
Our take on the ultimate all-round gravel bike. Go anywhere, bring everything and then keep on going.
Highlights
– Lightweight full carbon frameset with Kingpin rear suspension, Proportional Response size-specific construction, and StashPort downtube storage
– Smooth, effortless shifting from SRAMs versatile Rival XPLR AXS wireless electronic gravel group
– Light, durable, and aero 40 I 44 GR carbon gravel wheels from Reserve, with DT-Swiss 370 hubs, and WTB Vulpine 45c tires
– Comfort-enhancing Cannondale SAVE carbon seatpost, and Easton EA70 AX flared handlebars
– Cannondale Wheel Sensor delivers hyper-accurate speed, distance and route info, service reminders, and more via the Cannondale App
Product Specification
Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
Topstone Carbon, 1-1/8″ to 1.5″ steerer, 55mm OutFront offset, flat mount disc, internal routing, 12×100 thru-axle, triple bottle/gear mounts, fender mounts
Reserve 40 I 44 GR Carbon, Turbulent Aero Tech, 24h, tubeless ready
(F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
Sapim CX-Ray Aero, straight-pull
WTB Vulpine TCS Light, 700x45c, tubeless ready
Not included
SRAM Rival DUB, 40T
SRAM DUB BSA Road 68 Wide
SRAM Rival
SRAM Rival XPLR, XG-1351, 10-46, 13-speed
SRAM Rival AXS XPLR
SRAM Rival AXS
Easton EA70 AX, alloy, 16 deg flare, 120mm drop: 400mm (47cm), 420mm (51-54), 440mm (56-61cm)
Cannondale KnurlCork, 2.7mm
Cannondale C1 Conceal, Alloy, 31.8, -6°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
Acros IS52/40 ICR
SRAM Rival hydraulic disc, 160/160mm Paceline centerlock rotors
Fizik Terra Argo X5, S-Alloy rails
Cannondale SAVE Carbon, 27.2x350mm (47-58), 400mm (61)
47, 51, 54, 56, 58, 61
Large StashBag downtube storage bag, Reserve Fillmore tubeless valve stems, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo)
