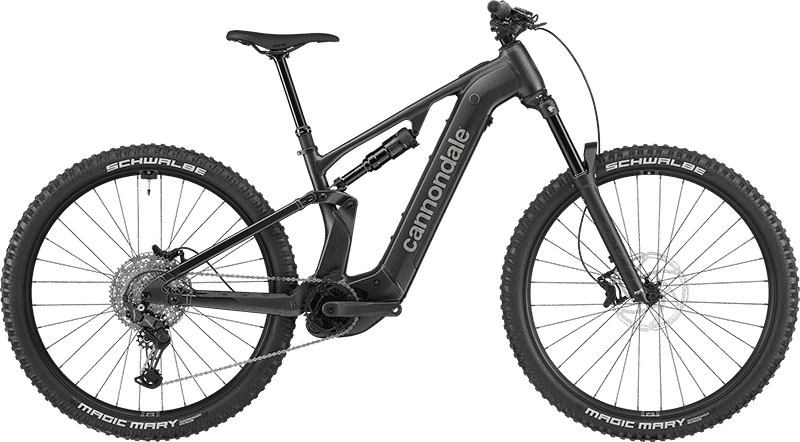

CANNONDALE Moterra 4 2026
– A premium SmartForm C1 Alloy frame – Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
– Climb-crushing strength and natural feeling power delivery from Bosch’s most powerful motor, the Performance CX
– Interchangeable 600Wh battery provides an ideal balance of range and light weight
– Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
– Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
– Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
– Climb-crushing strength and natural feeling power delivery from Bosch’s most powerful motor, the Performance CX
– Interchangeable 600Wh battery provides an ideal balance of range and light weight
– Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
– Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
– Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
Product Specification
Moterra, SmartForm C1 Alloy, 29″ wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
SR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset
RockShox Deluxe Select, DebonAir+, adjustable rebound, 230×62.5mm
WTB ST i30 TCS, 30mm inner width, 32h, tubeless ready
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
DT Swiss Champion 2.0
Schwalbe Magic Mary Performance, 29×2.4″, Addix Foldable, Tube
Not Included
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Shimano LG500, LinkGlide, 11-speed
Shimano CUES LG400, LinkGlide, 11-50, 11-speed
Shimano CUES U6000, LinkGlide
Shimano CUES U6000, 11-speed, LinkGlide
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Bosch Performance Line CX
Cannondale TaperRidge
Bosch PowerTube, 600Wh
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Bosch LED Remote
Acros ICR, 1.5″ to 1.8″, sealed bearings
Bosch 4A
Tektro M535 4-piston hydraulic disc, 203mm rotors
WTB Silverado Medium
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
SM, MD, LG, XL
Bosch PowerMore range extender compatible
