Descrizione

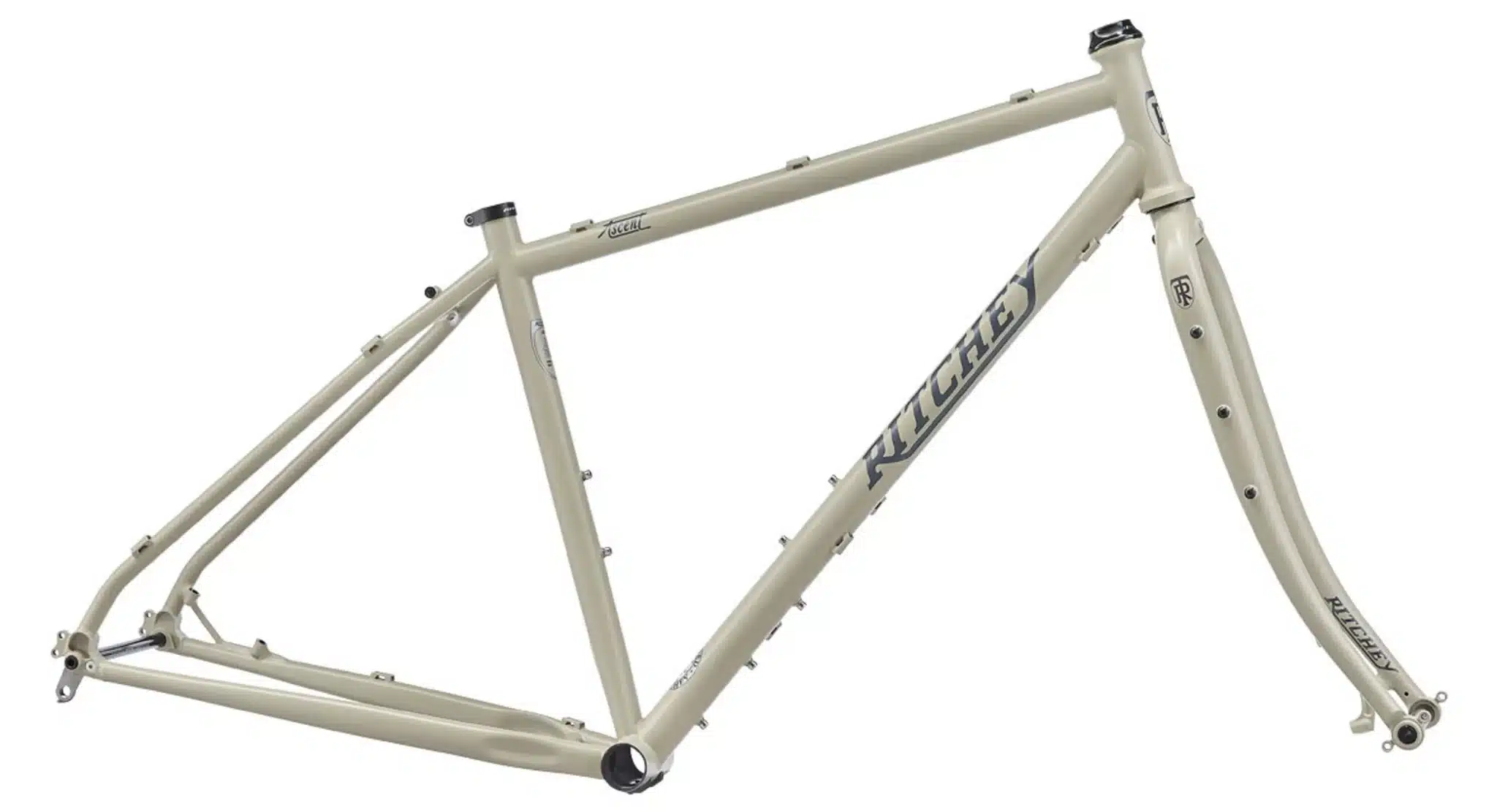

Il nuovo RITCHEY Ascent Frameset 2024 sarà perfetto per esplorare strade tortuose e sentieri infiniti. Il telaio in acciaio è saldato a tig. I tubi in acciaio a triplo spessore sono provvisti di supporti per montare parafanghi , dinamo e portapacchi. Anche la forcella può montare supporti multiuso e parafanghi.
Specifiche Tecniche:
Frame
- Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
- Rack and fender mounts
- Ultra-light forged and machined straight 1-1/8" headtube
- WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
- BOOST 148mm spacing (12mm alloy thru-axle included)
- Replaceable stainless-steel derailleur hanger
- 27.2mm seat tube with replaceable seat collar (max torque setting: 6Nm)
- Front derailleur clamp size: 28.6mm (max torque setting: 2.5Nm) - not included
- Bottom bracket: 73mm - English threaded
- Can accommodate 1X or 2X chainrings (Side Swing front derailleur required for double)
- Crankset min/max ring size - single: 38t / double: 36/24t
- External cable routing (continuous housing)
- Bottle mounts: 2
- Multi-purpose mount underside of downtube
Fork
- Ritchey steel fork with multi-purpose, rack, fender and threaded crown port
- 1-1/8" straight steerer
- BOOST 110mm spacing (15mm alloy thru-axle included)
- Steerer length: 300mm
- Axle-crown: 435mm
- Rake/Offset: 52mm
- Fork max payload: 3kg per side
Tire Compatibility
- Wheel and tire compatibility: 27.5" x 2.6" or 29" x 2.6" (depending on tire/rim manufacturer)
- Frame max spacing: 78mm
- Fork max spacing: 78mm
Brake Compatibility
- Post-mount brakes: 180mm max front rotor / 160mm max rear rotor
Details
- Sizes: S / M / L / XL
- Frame weight: 2400g (size L - w/o thru-axle)
- Fork weight: 1125g (with uncut steerer / not including axle)
- Color: Sierra Red
