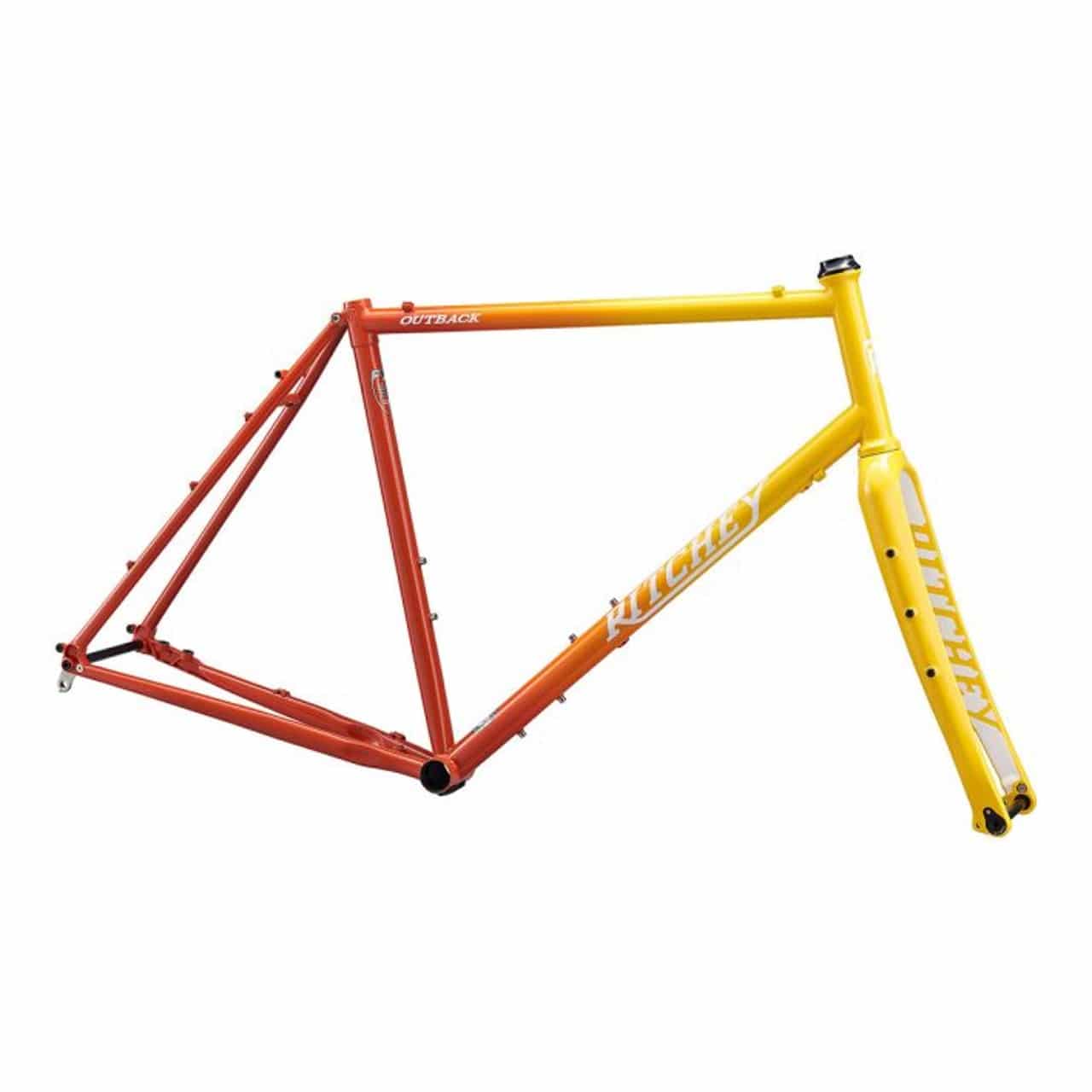

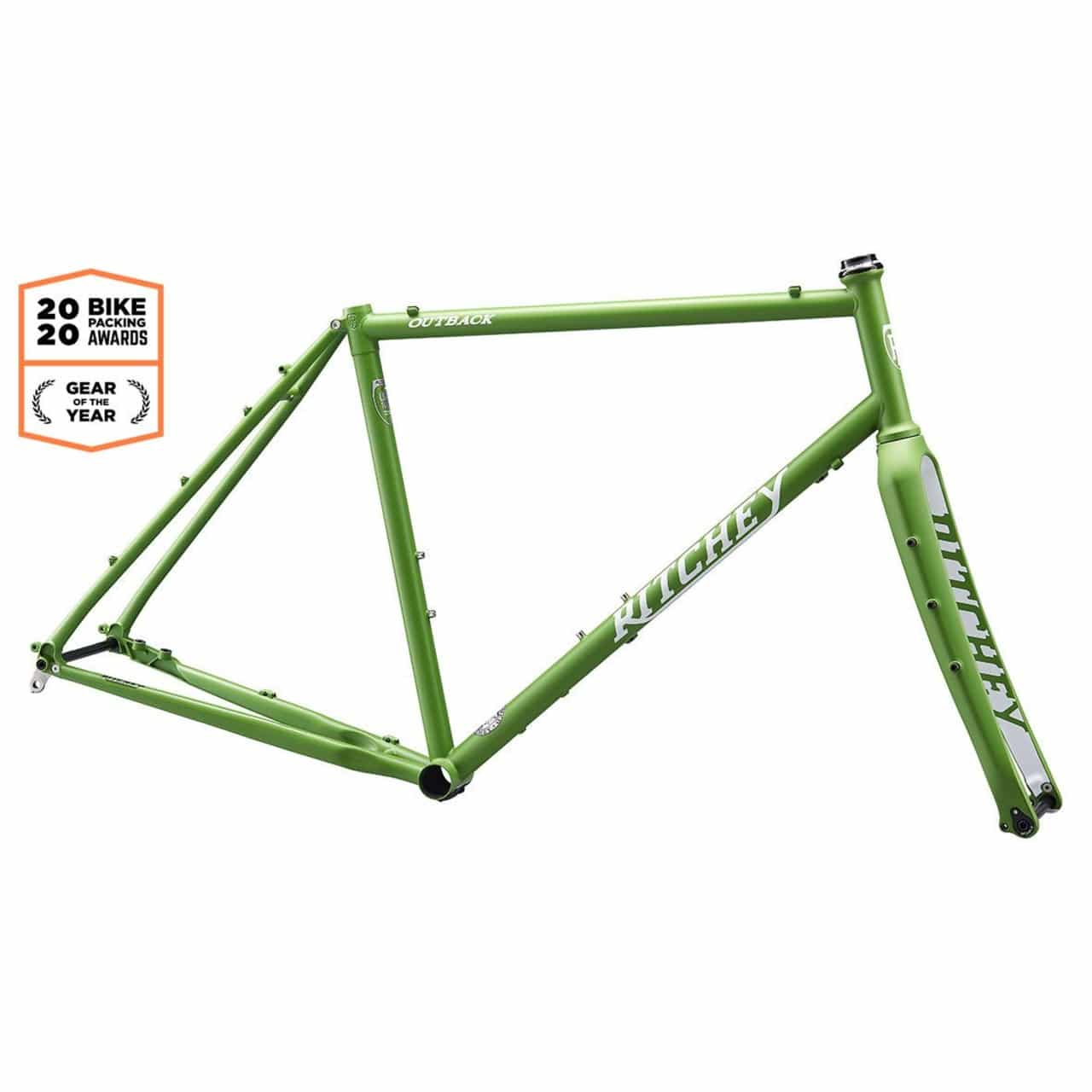

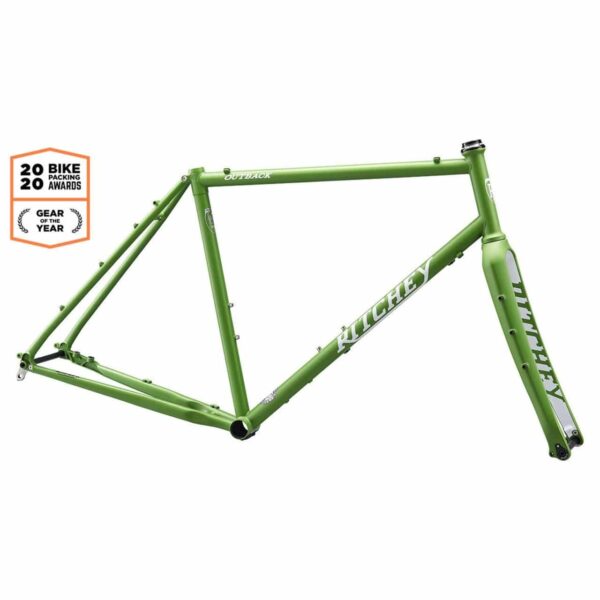

RITCHEY Outback frameset

Descrizione

Il RITCHEY Frameset Outback è l'icona del grintoso mondo delle bici gravel e dell'avventura. Il telaio in acciaio , costruito con tubi a triplo spessore, è provvisto di supporti per parafanghi. Per noi è il telaio Gravel in acciaio per eccellenza, pronto ad affrontare tutti i terreni con ruote 700C o 650b, ideale per fare Bikepacking e viaggi.

Puoi leggere la nostra recensione in questo articolo sul nostro Blog.

Frame

• Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
• Rack and fender mounts
• Ultra-light forged and machined straight 1-1/8" headtube
• WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
• 142mm spacing (12mm alloy thru-axle included)
• Replaceable stainless-steel derailleur hanger
• 27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
• Front derailleur clamp size: 28.6mm (max torque setting: 2.5Nm) - not included
• Bottom bracket: 68mm - English threaded
• Can accommodate 1X or 2X chainrings
• Crankset min/max ring size - single: 36 to 46t / double: 46/30t to 50/34t
• External cable routing
• Bottle mounts: 3

Fork

• New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
• 1-1/8" straight steerer with integrated 45-degree crown race
• 100mm spacing (12mm alloy thru-axle included)
• Steerer length: 300mm
• Axle-crown: 393mm
• Rake/Offset: 50mm
• Fork max payload: 3kg per side

Tire Compatibility

• Wheel and tire compatibility: 700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)
• Frame max spacing: 58mm
• Fork max spacing: 60mm

Brake Compatibility

• Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately)
• Frame flat-mount bracket height: 10mm

Details

• Sizes: XS / S / M / L / XL
• Frame weight: 2,175g (size L - w/o thru-axle)
• Fork weight: 445g (with uncut steerer / not including axle)
• Color: Guac y Crema
