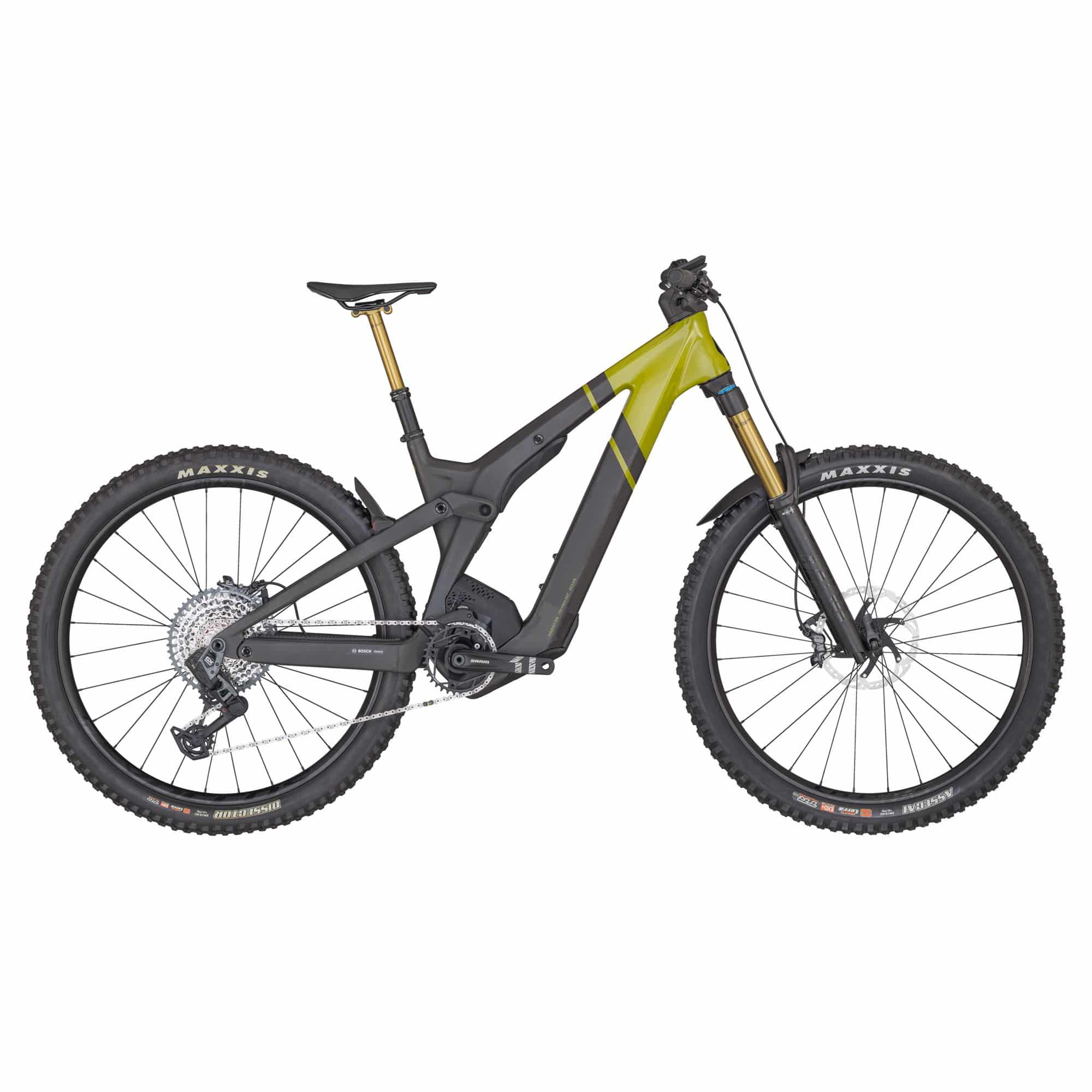

SCOTT Patron ST eRIDE 900 Tuned TR 2024

• TELAIO

  Carbon Main Frame & SST / Alloy CST-Link
  Virtual 4 link kinematic VLK
  29×2.6 / Boost 148x12mm UDH
  160mm travel / Bosch SmartSystem / Integr. removable Battery
  1.8″ Headtube, Central Kickstand Mount
  Integr. Cable

• ESCURSIONE

  Front: 170mm / Rear: 160mm

• FORCELLA

  FOX 38 FIT Factory Grip 2 Air / Kashima
  HSC – LSC – HSR- LSR adjustable / QR Axle 15x110mm
  44mm offset / tapered steerer
  170mm travel

• AMMORTIZZATORE POSTERIORE

  FOX NUDE T eRIDE EVOL Kashima / Trunnion
  SCOTT custom w. travel / geo adj.
  3 modes: Lockout-Traction Control-Descend
  custom large air volume / DPS / Reb. Adj.
  Travel 160-115-Lockout / 205X60mm

• COMANDO REMOTO

  TracLoc Technology
  Rear Suspension & Dropper Remote
  3 Rear Suspension modes

• MOTORE

  Bosch Performance CX-R
  EU: 25kmh / INT: 20mph

• BATTERIA

  PowerTube 750Wh

• SCHERMO

  Bosch LED Remote & Kiox 300

• CARICATORE

  4A Charger

• DERAGLIATORE POSTERIORE

  SRAM GX Eagle AXS Transmission 12 Speed
  Wireless Electronic Shift System

• LEVE DEL CAMBIO

  SRAM GX Eagle AXS Rocker Controller

• GUARNITURA

  SRAM X1 1000 / 165mm

• GUIDACATENA

  e*thirteen / e*spec Slider

• CORONA

  SRAM Eagle Transmission 34T chainring / Steel

• CATENA

  SRAM CN GX Eagle Transmission

• CASSETTA

  SRAM GX Eagle XS 1275 Transmission 10-52T

• FRENI

  Shimano XT / BR-M8120 4 Piston

• DISCO DEL FRENO

  Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm

• MANUBRIO

  Syncros Hixon iC SL / 15mm Rise / integrated cockpit
  S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension
  7° backsweep / 6° upsweep / Syncros Endurance lock-on grips

• REGGISELLA

  FOX Transfer Factory Dropper Post Kashima
  31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm

• SELLA

  Syncros Tofino 1.5 Regular
  Titanium rails

• SERIE STERZO

  Acros / 1.8″
  ZS66 OD74 / integr. Cable

• RUOTE

  Syncros Revelstoke-E 1.5 CL
  F: 15x110mm
  R: 12x148mm Boost
  30mm Tubeless ready rim 28H
  Syncros Axle w/Removable Lever with Tool

• GOMMA ANTERIORE

  Maxxis Assegai 29×2.6″
  120TPI Foldable Bead
  EXO+ / TR Tubeless ready
  3C Maxx Terra

• GOMMA POSTERIORE

  Maxxis Dissector 29×2.6″
  120TPI Foldable Bead
  EXO+ / TR Tubeless ready
  3C Maxx Terra

• LUCI

  Syncros integrated rear fender light
  Front Light Cable pre-installed

• EXTRA

  Syncros Fork Fender
  SRAM AXS Extension Cord

• PESO IN KG (APPROX.)

  23.6 (with tubes)

• PESO IN LBS (APPROX.)

  52.03 (with tubes)

• PESO TOTALE

  128kg
  Il peso totale include la bici, il ciclista, l’equipaggiamento, e potenzialmente bagagli aggiuntivi

SCOTT Patron ST eRIDE 900 Tuned TR 2024
